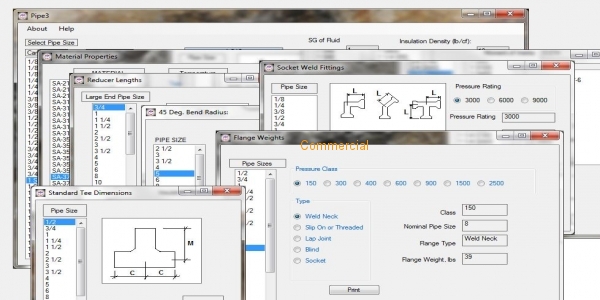

Program Features:
This program provides a wide range of information on pipe properties and related items commonly used by engineers. Some of the features are:

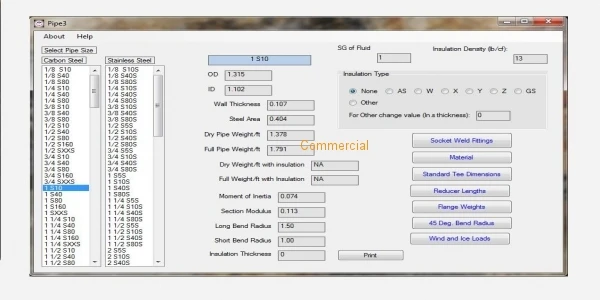

Pipe Data Base:
This section provides information on pipe diameters, weights, section properties and bend radiuses.
Socket Weld Fittings:
This feature provides dimensional data on socket welded fittings based on pressure rating and pipe size.
Material:
This feature provides information on commonly used piping material such as Young’s modulus, coefficient of thermal expansion and allowable ASME III stress based on system temperature.
Standard Tee Dimensions:
This feature provides standard tee dimensions based on pipe size.
Reducer Lengths:
This feature provides reducer lengths based on pipe size.
Flange Weights:
This feature provides the weight of various flange types based on pipe size and pressure rating.
Wind and Ice Loads:
This feature provides wind and Ice loads on piping based on the requirements of ASCE 7-10. We consider this feature one of the most valuable features in the software. It eliminates the tedious process of working through the details of ASCE 7 and gives you pipe loads with just a few clicks.
The program will run on Windows 7, 8 and 10 operating systems.
