Trace printed graphs with smooth Bezier curves. Import the data into your favorite analysis software.
Accurate Tracing

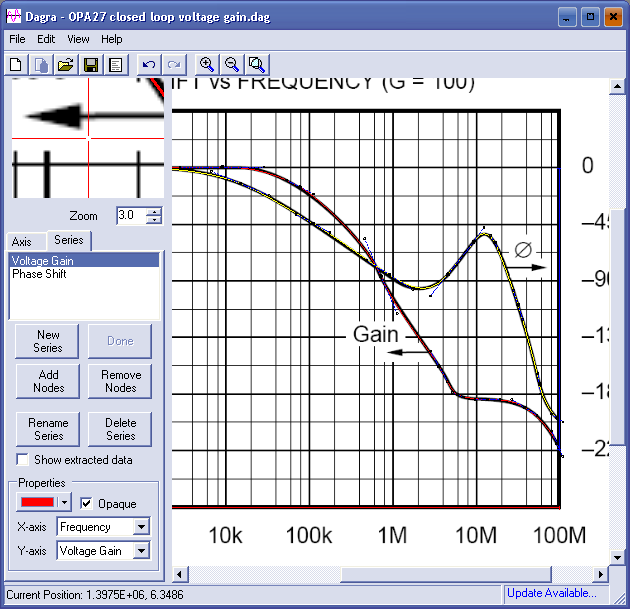

With Dagra, you’ll use Bezier curves to digitize data.
Similar to the tools you’d find in CAD or drawing applications, Bezier curves let you get an accurate, smooth trace of your data very quickly.
And smooth curves will give you nice derivatives for spectral datasets.
Digitize from Datasheets
Datasheets provide a wealth of design information which is often presented graphically.
Use Dagra to digitize graphs in datasheets. Import the data into your design so your design calculations can update automatically.
Compare Data
Graphs let you compare digitized data visually.
Whether you want to show the colour of a light-emitting diode with context from the eye’s response, or show local temperature measurements against global trends, Dagra lets you digitize the data from multiple sources to pull them together on a single graph.
Build Dynamic Models

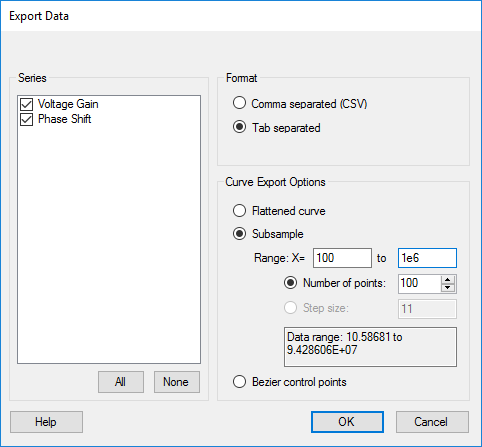

After tracing with Dagra, you can load the data into your favourite analysis tool.
Using linear interpolation to ‘lookup’ values from the digitized data lets you build models that update automatically as design parameters change.
