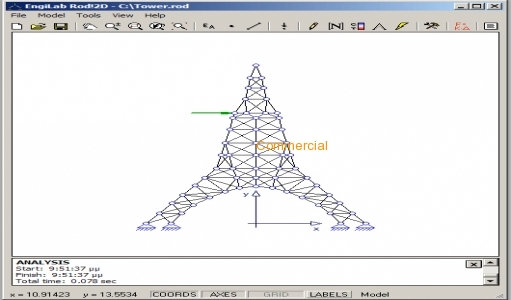

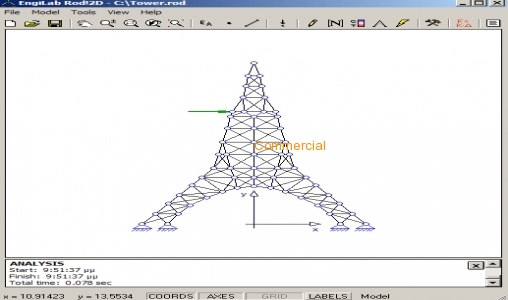

EngiLab Rod!2D™ is a powerful engineering tool for the linear static analysis of plane (2D) trusses for Windows, using a 2-Degrees of Freedom per node approach. It features a Full GUI (Graphical User Interface) for pre-processing or post-processing and uses the Finite Element Method (FEM) for plane trusses for its analysis needs.
Features
- Full GUI (Graphical User Interface)
- Linear static analysis of 2D Trusses
- 2 DOFs (Degrees Of Freedom) per Node
- Elastic (Spring) nodes
- Computation of Node x,y Translations
- Computation of Element Axial Forces / Stresses / Strains
- Computation of Constraint Reactions
- Computation of Spring forces
- Drawing of Deformation
- [N] Diagrams: Axial Force / Stress / Strain
- Color Diagrams: Axial Force / Stress / Strain
- Deformation animation
- Compatibility with any consistent system of units (Metric/Imperial etc)
- Export of results tables directly to Microsoft Excel
|
