GEO5 Nailed Slope

GEO5 Nailed Slope program analyses nailed walls and slopes of various shapes. The main features of GEO5 Nailed Slope program are:

• Verification analysis can be performed employing EN 1997-1, LRFD or classical approach (limit states, the factor of safety)
• EN 1997 – option to choose partial factors based on National Annexes
• EN 1997 – option to choose all design approaches, consider design situations
• Generally layered soil environment
• Built-in database of soil parameters
• Arbitrary number of surcharges applied to structures (strip, trapezoidal, concentrated load)
• Arbitrary number of inserted forces (anchors, safety fences, etc.)
• Modelling of water in front of and behind structures, modeling of artesian water

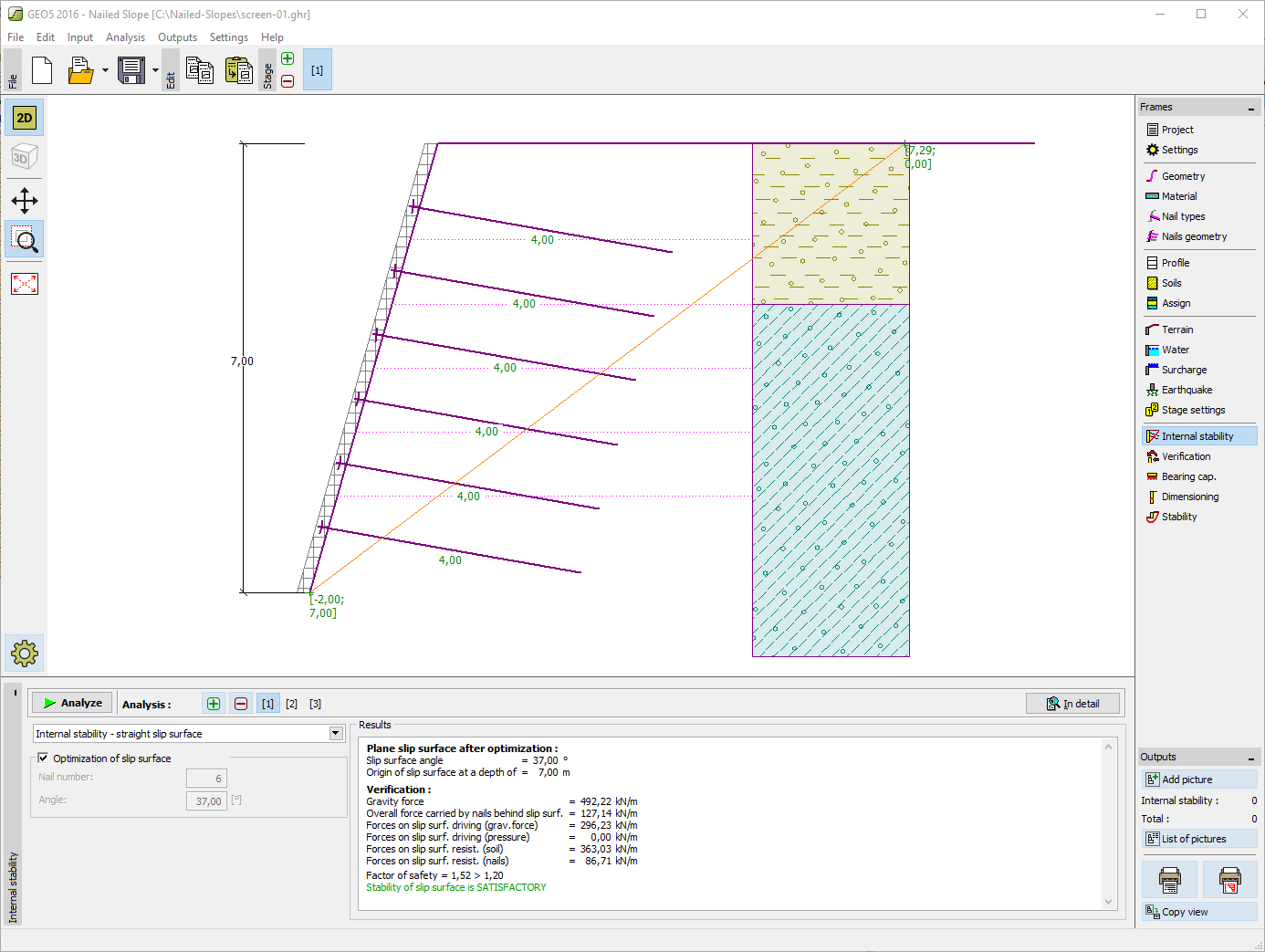

• Internal stability analysis (overturning, slip, bearing capacity of foundation soil)
• General shape of terrain behind the structure
• Analysis of earth pressures in effective and total parameters
• Earthquake effects (Mononobe-Okabe, Arrango, Chinese standards)

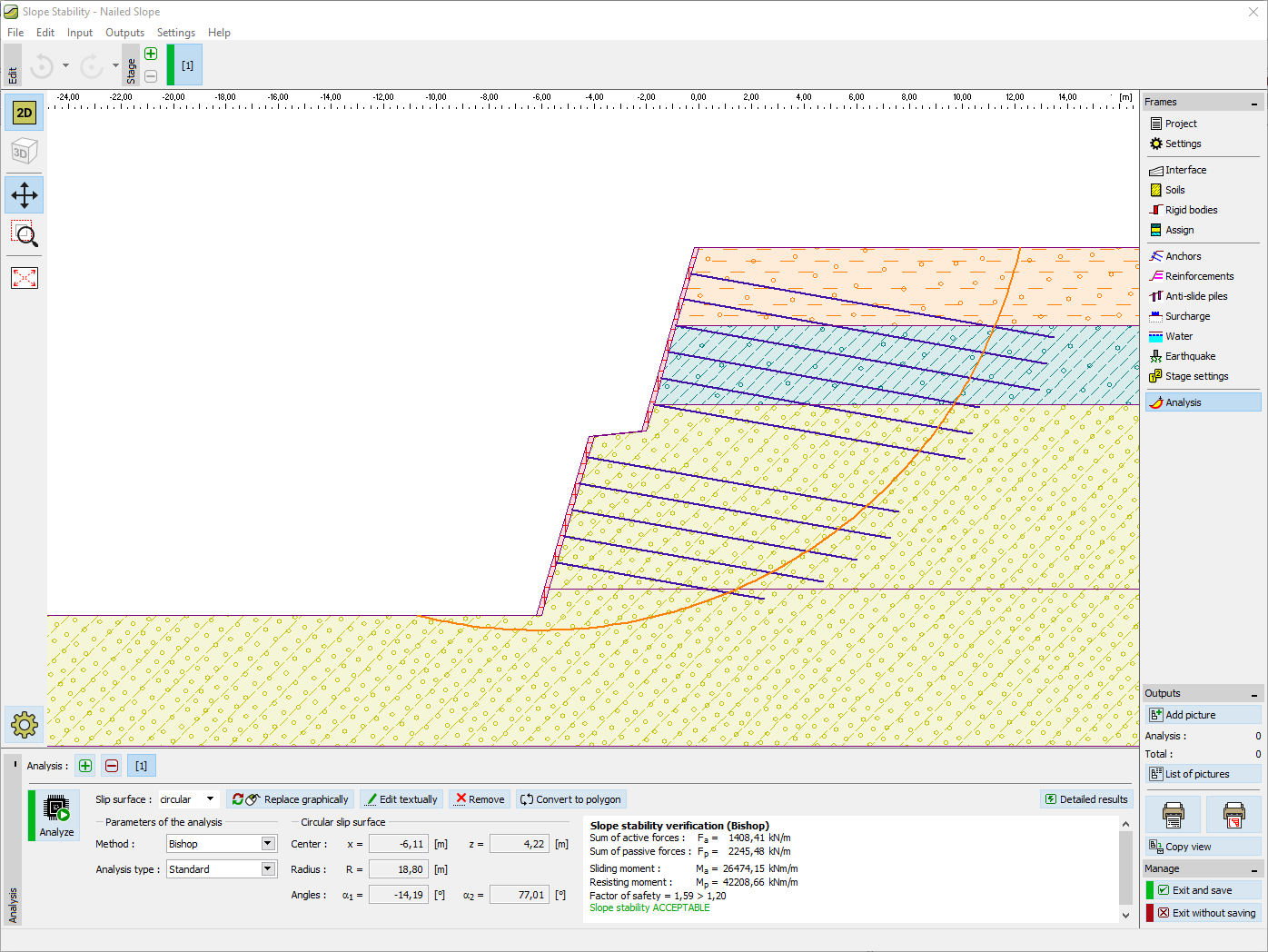

• Stability along the straight or polygonal slip surface
• Multiple construction stages
