The program GEO5 Redi Rock wall is used for designing advanced retaining walls using Redi-Rock retaining wall systems (USA). It allows the analysis of gravity walls with Redi-Rock blocks, as well as the calculation of MSE walls with Redi-Rock Positive Connection (PC) blocks and Mirafi geogrids. The main features are:
- Calculation of MSE walls with Redi-Rock Positive Connection (PC) blocks and Mirafi geogrids
- Database of blocks and setbacks produced by Redi-Rock Inc.
- Analysis of Gravity Wall or MSE Wall
- Verification analysis can be performed employing EN 1997-1, LRFD or classical approach (limit states, a factor of safety)
- Verification of wall against slip and overturning

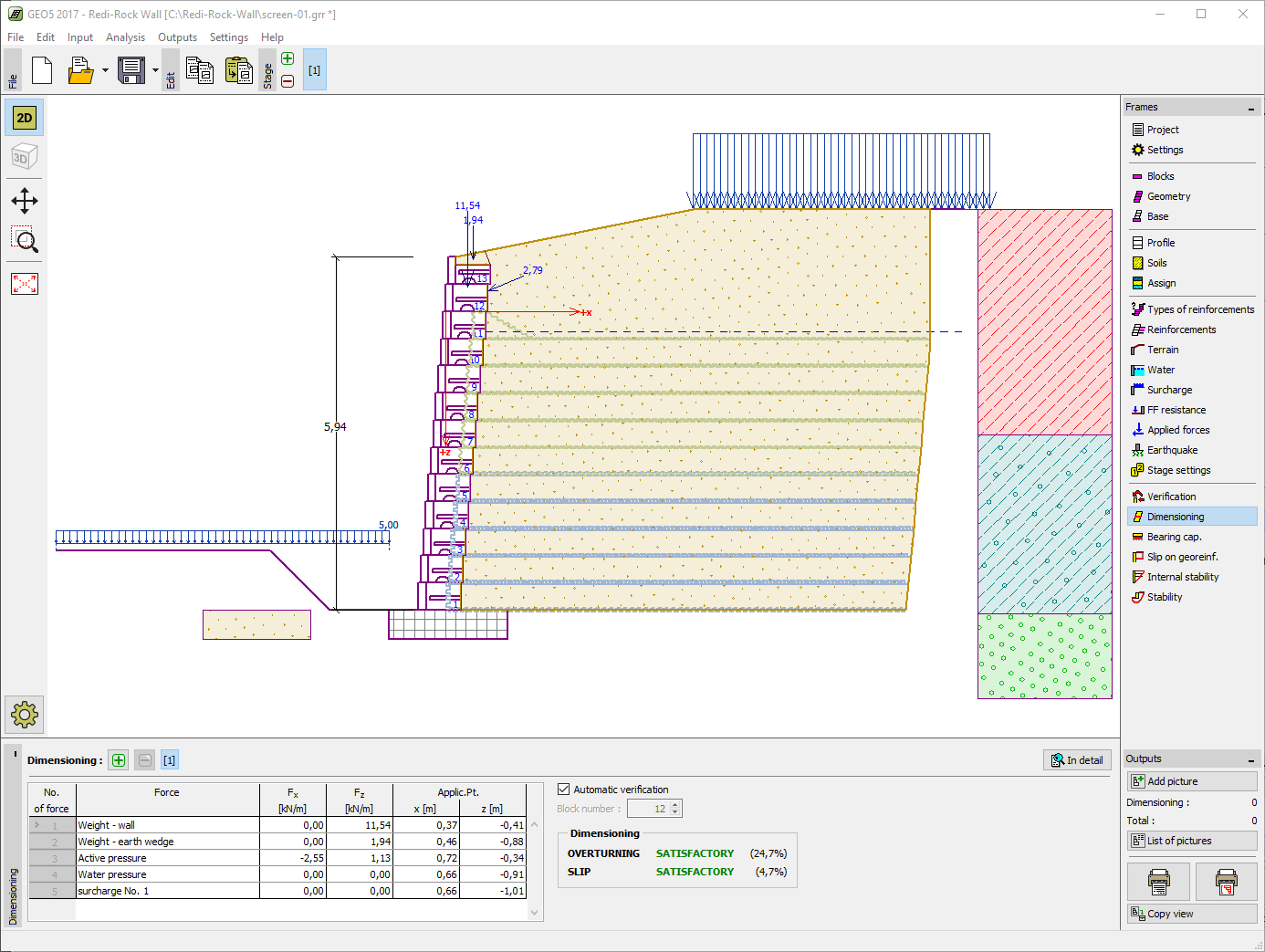

- Verification of slip and overturning of arbitrary part of the wall (dimensioning)
- Verification of bearing capacity of foundation soil in program Spread Footing
- Verification of slip on georeinforcement, tensile and pull-out resistance of georeinforcement
- Verification of connection strength
- Verification of internal stability
- for extensible reinforcements
- Standard - straight slip surface
- AASHTO – Extensible
- FHWA NHI-10-024
- for inextensible reinforcements
- AASHTO – Inextensible
- JTGD30 - 2004 Highway China Code
- TB 10025 Railway China Code
- BS 8006 - Coherent Gravity Method

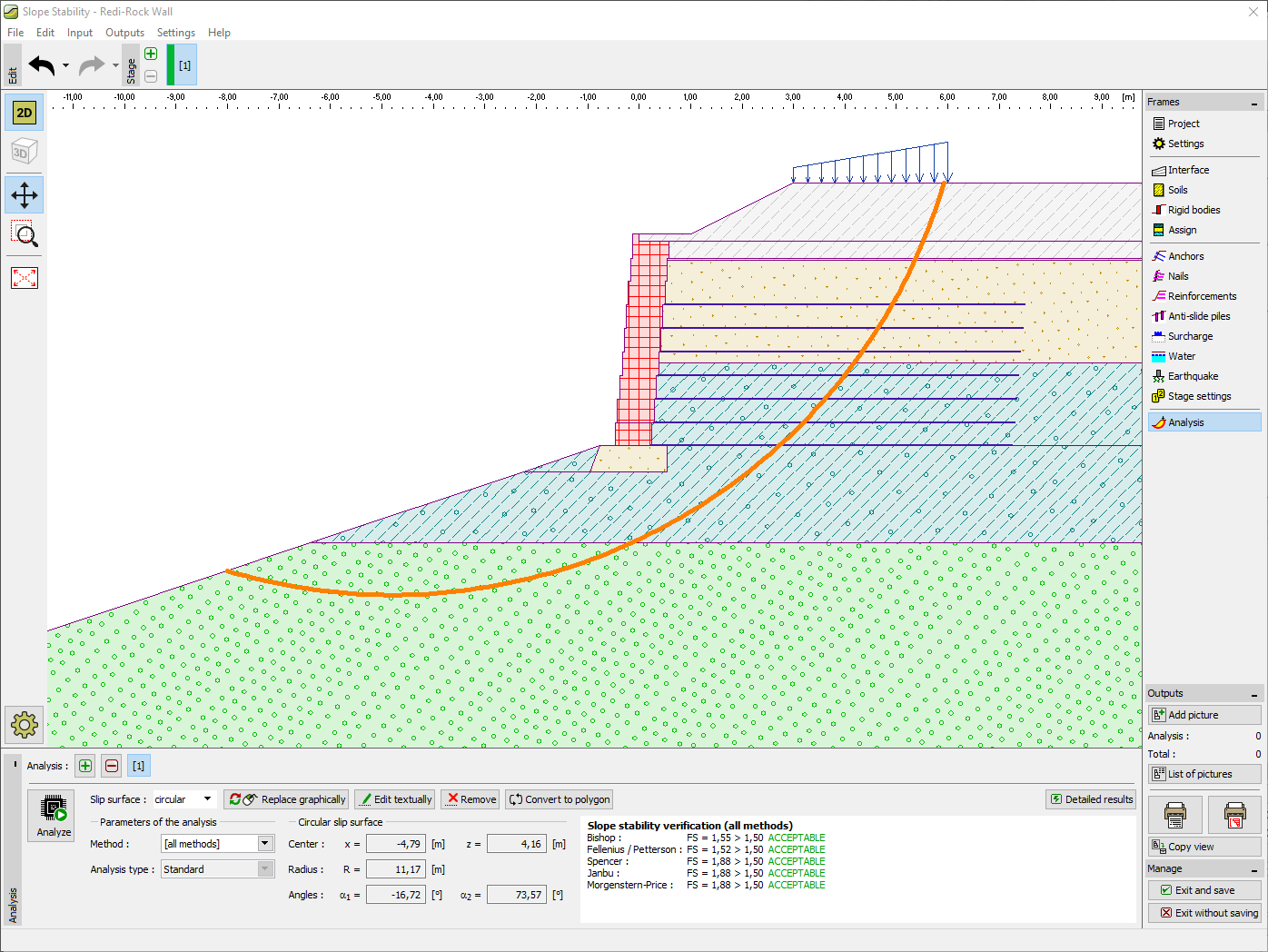

- Verification of global stability of a wall using a program Slope Stability
- Earthquake effects (Mononobe-Okabe, Arrango, Chinese standards, NCMA)
