Description

GEO5 Slope Stability – Water Flow module allows the determination of the pore pressures in the slope by using the steady state or transient groundwater seepage analysis by the finite element method.
The module is connected directly to the program and can be purchased separately without the need to purchase the FEM program.
Main features are:
  • Material models for the unsaturated zone:
    • Log-linear model
    • Van Genuchten model
    • Gardner model
  • Database of material parameters based on USCS classification and soil consistency

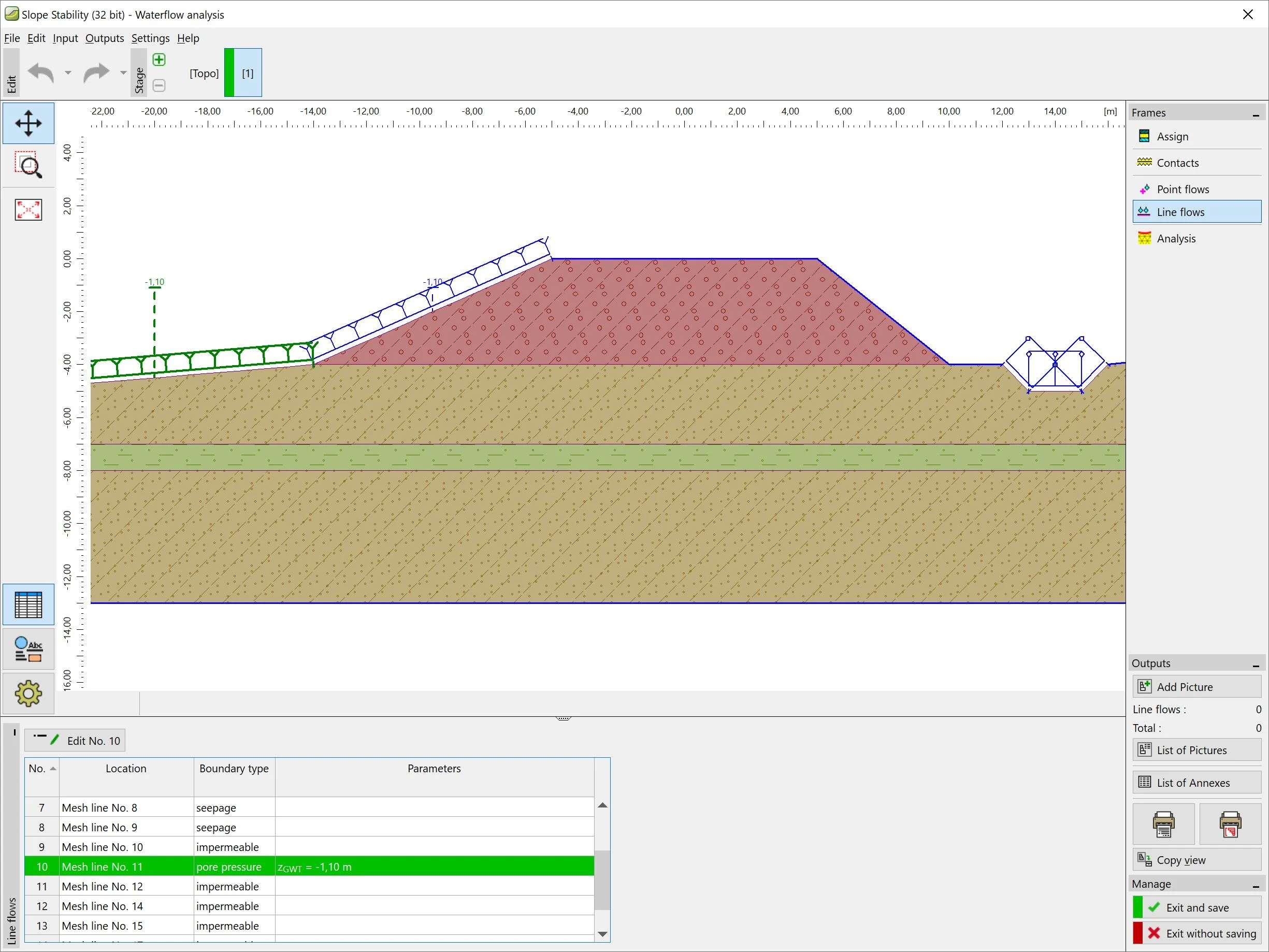

  • Boundary conditions:
    • Impermeable line
    • Permeable line
    • Prescribed pore pressure
    • Prescribed inflow / outflow
    • Seepage surface with conditions not known in advance
  • Point hydraulic conditions:
    • Inflow / outflow
    • Pore pressure at a point
  • Possibility to represent partially permeable interfaces (contacts) and beams
  • Introduction of drains and preference paths
  • Flexible time step adjustment for effective computation
  • Lucid representation of pore pressure distribution, flow velocities and ground water table

Specifications

Licence:
Commercial
Provider:
Fine Software
