GEO5 Stratigraphy - Logs

The Stratigraphy - Logs module is used for geological data reporting from site investigation (boreholes, wells, SPT, CPT, DMT and more). It provides a comprehensive database of pre-defined templates and the ability to create user-defined templates and data reports. To create cross sections use Stratigraphy - Cross Sections module, both modules are extensions of the Stratigraphy program. The main features of GEO5 Stratigraphy - Logs are:

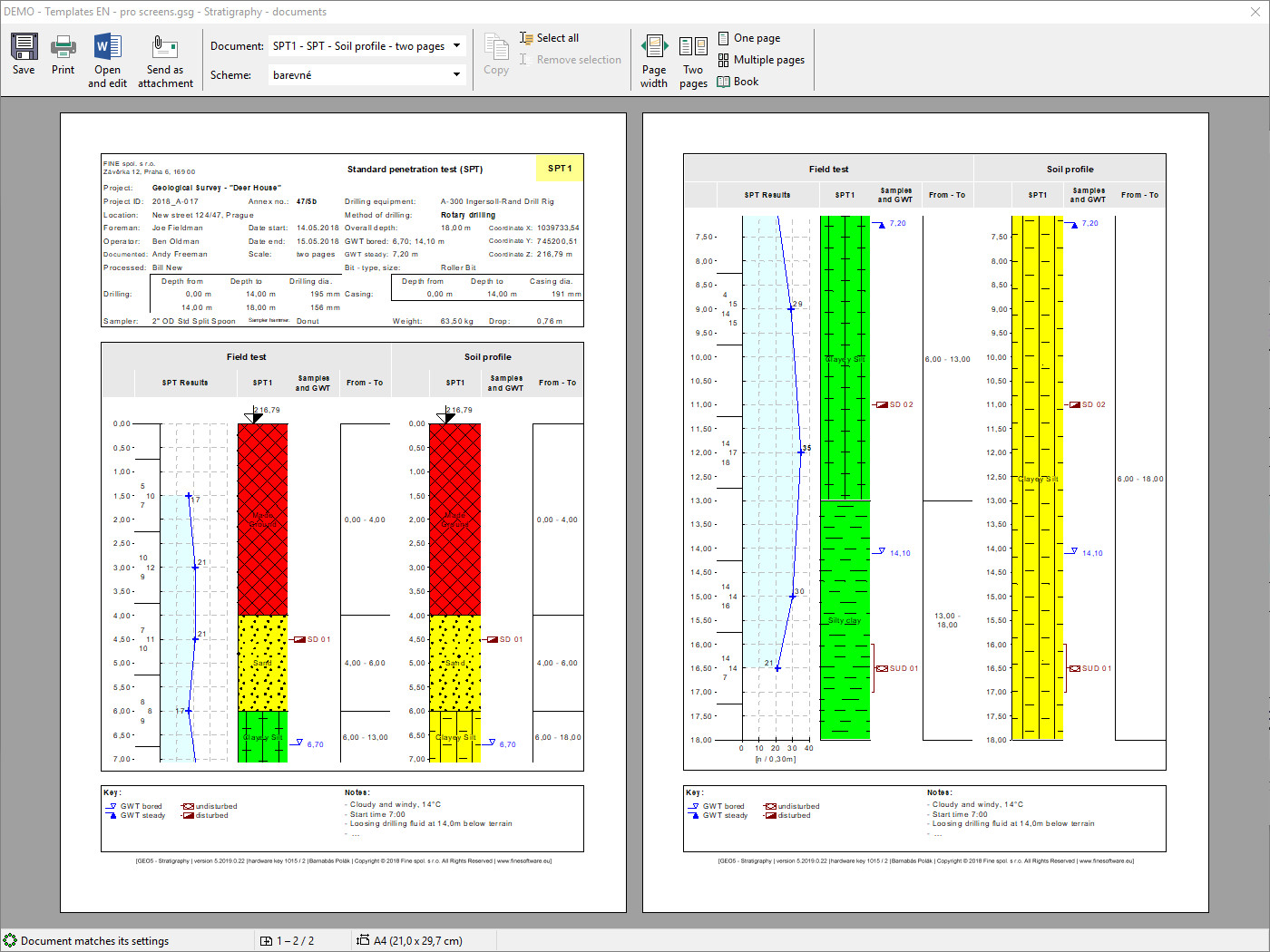

• Professional site investigation reports including boreholes, wells, cone penetration tests,
• standard penetration tests, dilatometer tests, pressuremeter tests...and more
• Comprehensive database of pre-defined templates

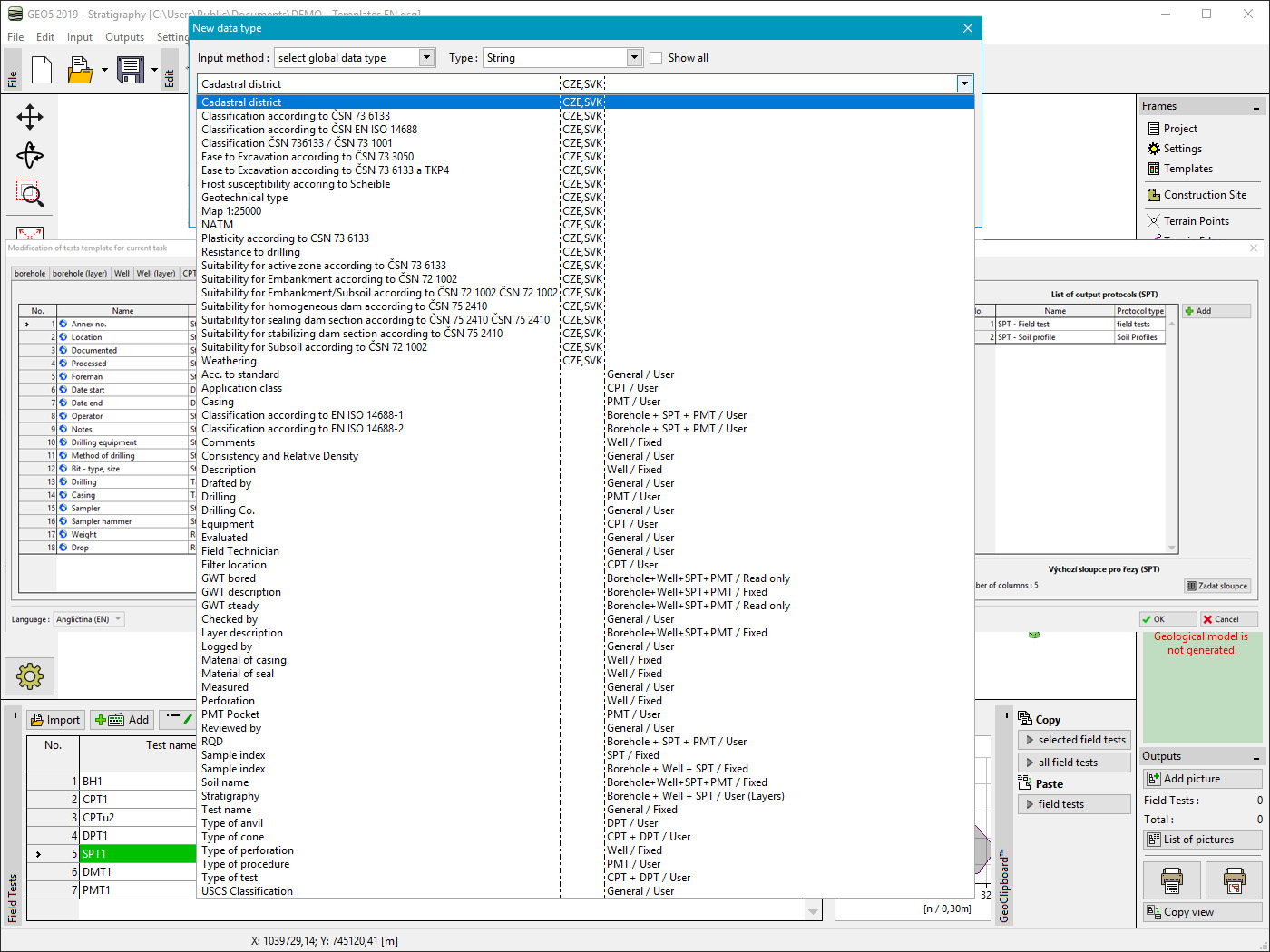

• Ability to create user-defined templates and data reports
• Catalogue of patterns and color shades
• gINT
• DIN 4023
• YS 5204
• GEO
• Automatic creation of soils catalogues during input of boreholes
• Many types of casing, annular fills and head types for wells
• Print outputs to full page or in selected scales
• Export to wide range of formats (PDF, DXF, MS Word,…)
• Independent of CAD programs
