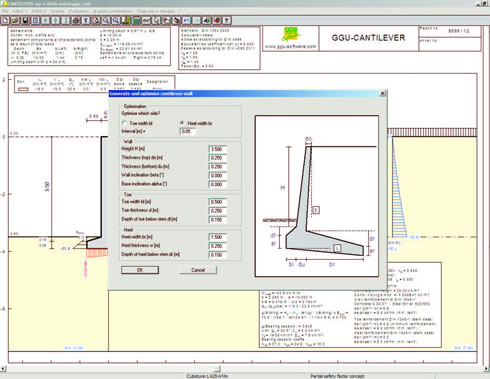

Analysis and design of cantilever walls using global and partial safety factor concepts. Among other things, the program simplifies optimisation of spur width and reinforced concrete design.
Capabilities:
System input using absolute heights
Choice of analysis using either partial safety factors to DIN 1054:2005 or EC 7 or global safety factor (DIN 1054 old)
Berms on the active and passive sides
Bounded and double-bounded surcharges on active and passive sides
Analysis using active earth pressure,
at-rest earth pressure or increased active earth pressure
Active earth pressure coefficients to
DIN 4085 or user-defined values
Passive earth pressure coefficients to
DIN 4085:2011, Streck, Caquot/Kerisel or user-defined values
Choice of hydraulic gradient consideration on active and the passive sides
Consideration of displacement and action boundary conditions, anchors, struts etc.
Examines bearing capacity 5° condition to DIN 4017
Settlement analysis to DIN 4019
Limiting depth analysis using p % of
overburden stress, a multiple of footing width b' or a fixed value
Analysis of overall system stability (sliding, overturning, bearing capacity)
Analysis of hydraulic heave safety and
buoyancy safety
EQU analysis
Deep-seated stability analysis with
optimisation of anchor lengths
Reinforced concrete design and
crack width analysis compliant with EC 2
Anchor steel design
Choice of earth pressure redistributions (among others to EAB 1988 or EAB 2006)
Choice of result visualisations, among
others for earth pressure on equivalent wall, water pressure, moments, shear force, normal force, displacement, soil pressure, settlements
Consideration of pre-stresses and
pre-deformations
Seismic effects via additional horizontal loads and/or altered earth pressure coefficients to EC 8 or EAU 1992
Interface to the GGU-STABILITY program (slope failure analyses)
Adopted standard, program name and
version can be included in the General legend
User-designed output sheet
Print or copy screen sections, e.g. for
transfer to a word processor
Integrated Mini-CAD system for additional annotation of graphics
