Comprehensive Pile Foundation (GEMS)

The GEMS Comprehensive Pile Foundation Analysis software supports analysis of land, bridges and water front piles.  This software offers a single platform consideration of different pile types, different codes of practice as well as other well-known procedures adopted in practice.

Package includes modules for
a) Pile capacity estimation
b) Axially loaded pile analysis
c) Laterally loaded pile analysis

Available on #macOS & #windows and on the #cloud using a browser

·      One click computation and analysis for all load cases and modules.

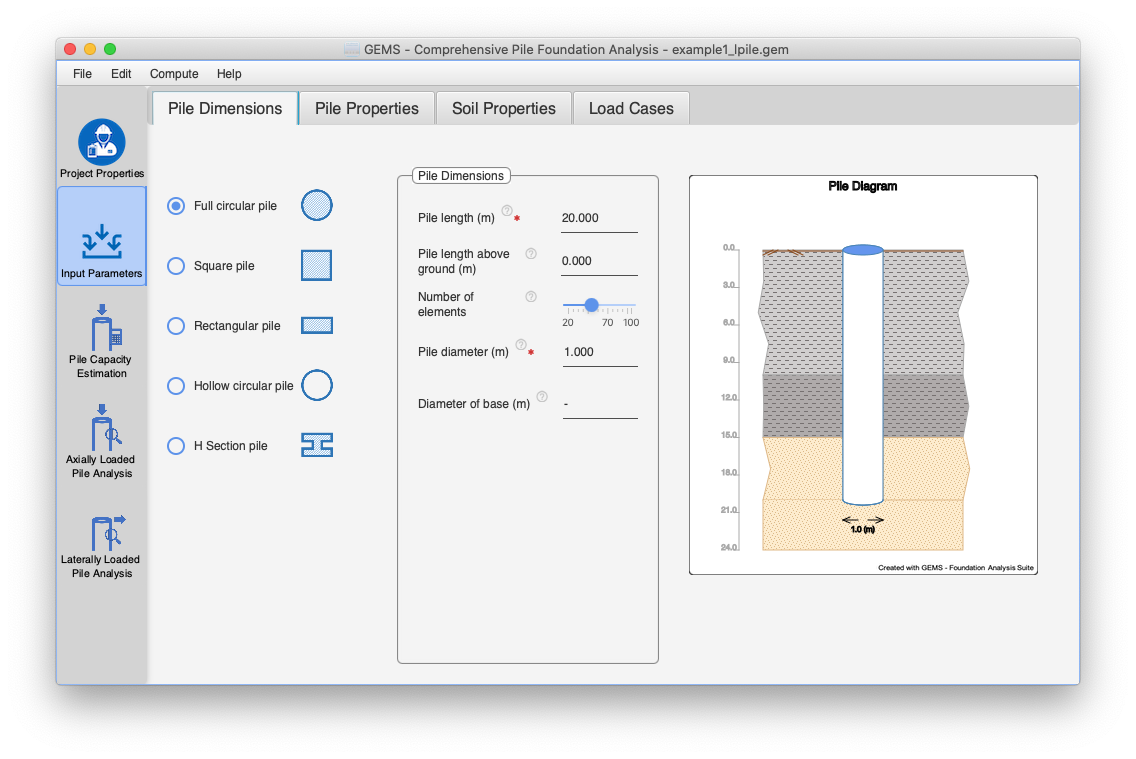

·   Piles of circular, square, rectangular, circular-tubular & I or H cross sections can be analysed.

·      Axial pile capacity estimation

·      Analysis of the pile foundation under combined lateral and axial loads.

·      Linear & Non-linear analysis models

·      Multiple load cases.

·      Graded mesh for lateral pile analysis along the pile length for better accuracy

·      Pictorial representation of the pile and soil layers.

·      Loading diagrams for each load case.

·      Export of results to Microsoft Word & Excel

·      Support for Windows and Mac

·      Available online on the Cloud

·      The loading may consist of axial load, lateral load and lateral moment.

·      Static and cyclic loadings can be incorporated for lateral analysis.

·      Self-weight of pile may be included if required.

·      Local scour & ground water table considerations.

·      Facility of prescribing lateral displacement, rotation & rotational spring at the pile head.

·      Generation of p-y, t-z and q-z curves based on soil properties.

·      Consideration of group effect by user prescribed p-multiplier, y-multiplier & z-multiplier.
