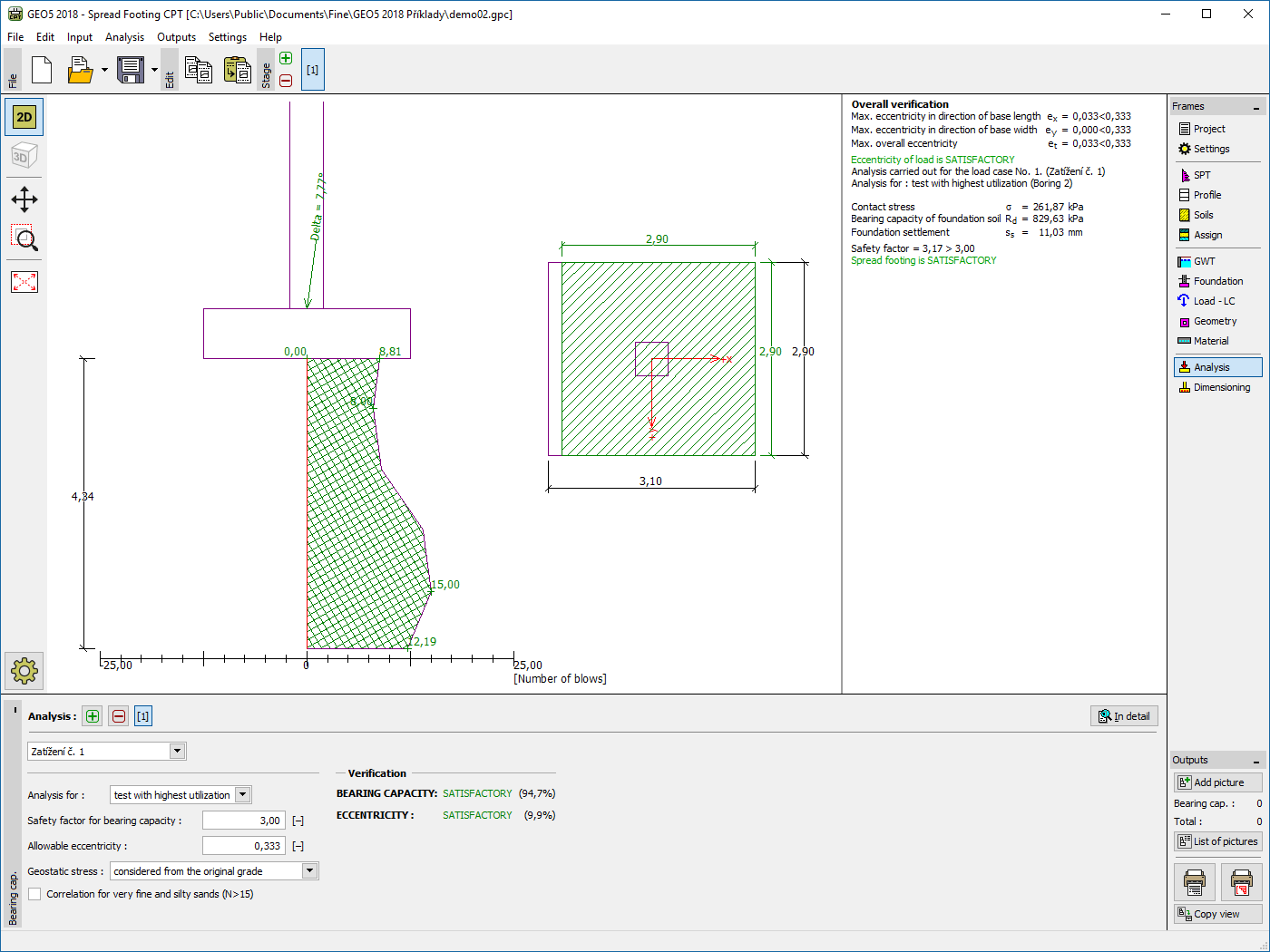

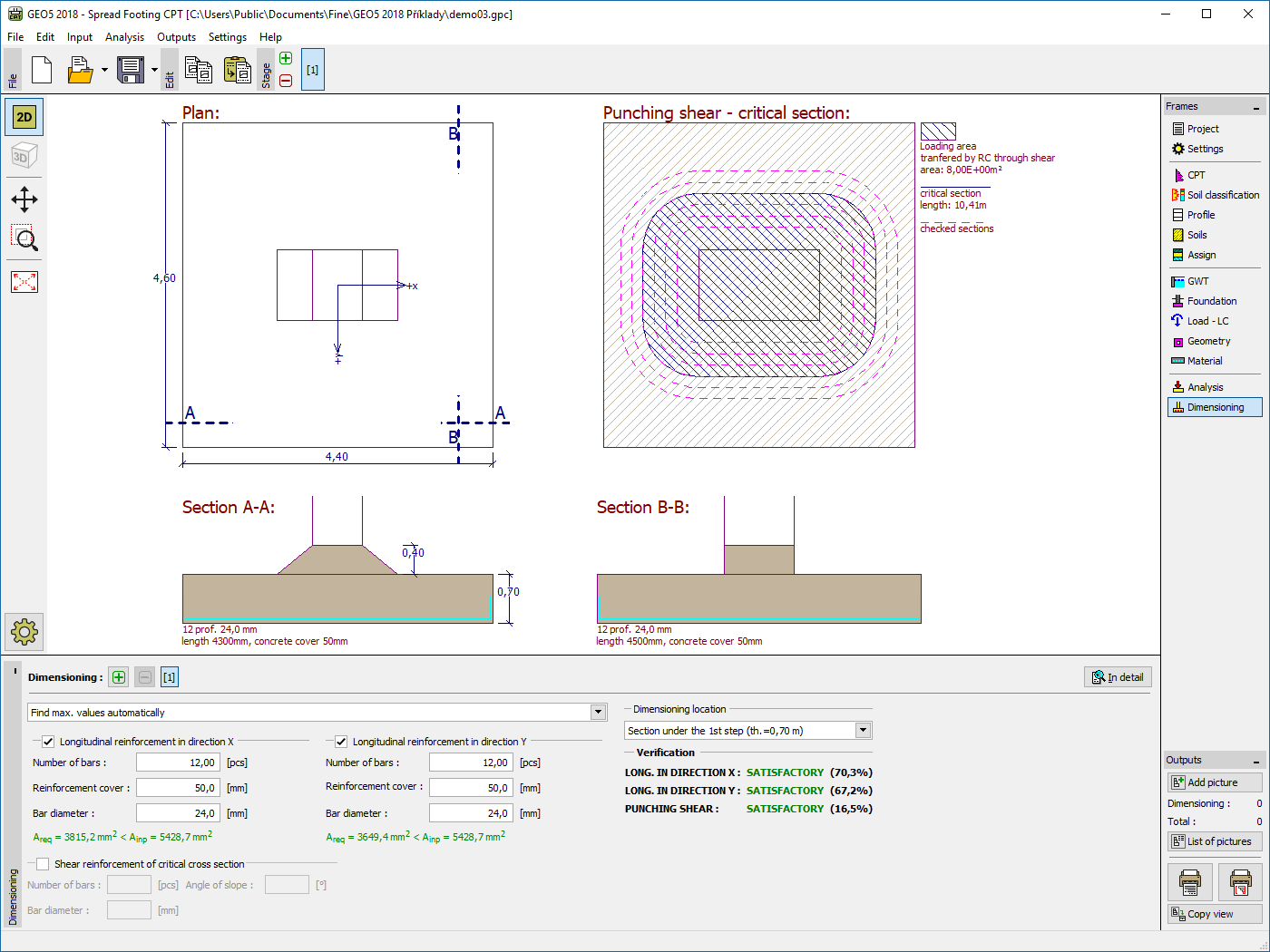

This program is used for the design and verification of spread footing foundations based on data from field tests (CPT, SPT). The program performs an analysis for vertical and horizontal bearing capacity, settlement and longitudinal and shear reinforcement (punching). The main features of GEO5 Spread Footing CTP program are:
- Shapes of footing foundation - centric, eccentric, stepped centric, stepped eccentric, spread footing with the haunch
- Import CPT tests in many formats (TXT format, gINT format, AGS format or NEN standard)

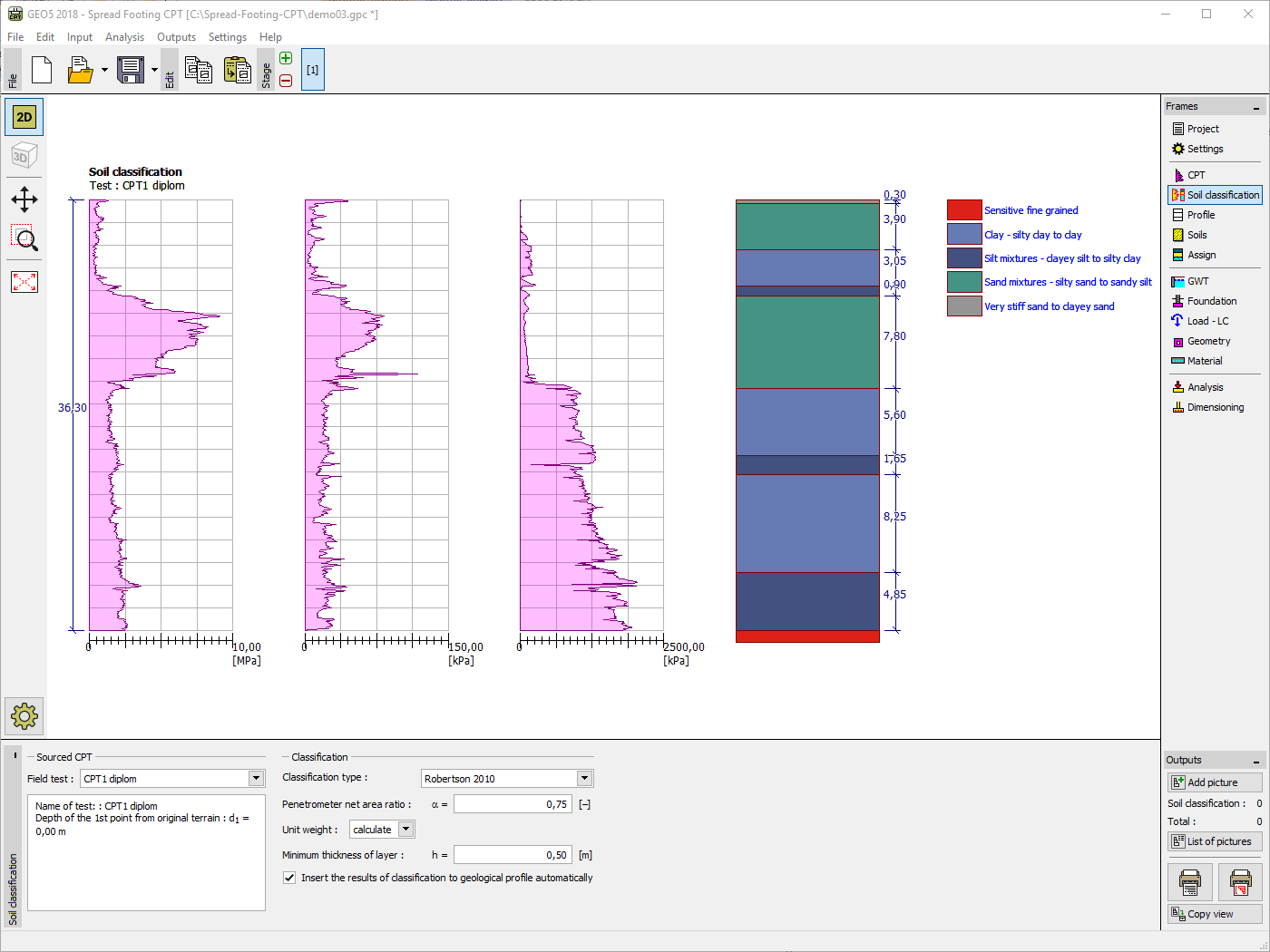

- Built-in classification of soils according to Robertson (1986 or 2010)
- Analysis of the bearing capacity according to CPT using the following methods:
- Meyerhof
- Schmertmann
- Skempton
- Analysis of the bearing capacity according to SPT using the following methods:
- Analysis of the settlement according to CPT using the following methods:
- Analysis of the settlement according to SPT using the following methods:
- Automatic design of dimensions of spread footing foundation
- Built-in database of soils
- General layered subsoil
- Arbitrary number of load cases
- Modeling of ground water table
- The inclined shape of ground
- Inclined footing bottom
- Verification of load eccentricity
