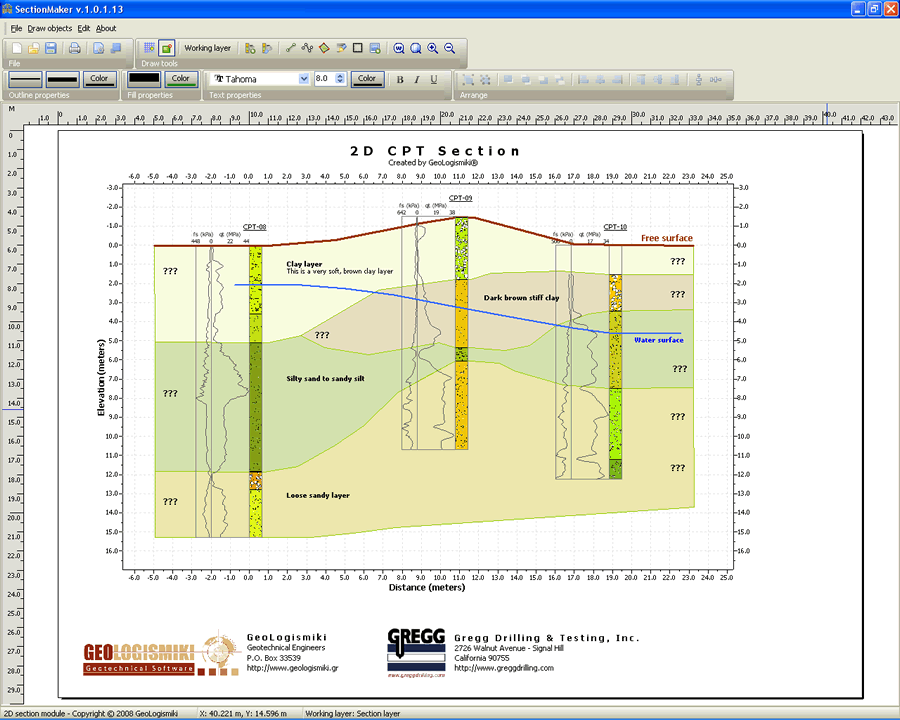

SectionMaker is an add-on module for our CPeT-IT software. It provides an easy to use CAD like interface for the creation of 2D cross sections based on the typical geotechnical sections previously defined in CPeT-IT.
SectionMaker is offered as a stand alone application.
Main Characteristics
- Imports typical geotechnical sections from any CPeT-IT project file
- Supports input in both the SI and Imperial unit systems
- Tools to draw single lines, open polylines, closed polylines and text objects
- Exports section in any major graphic format
- Export section in DXF format (R14 and R2000 format)
